RD-BZN6820P UHF RFID Security Gate

✨ Product Highlights
RD-BZN6820P UHF RFID Security Gate, supporting the EPC C1 G2 protocol, with a lane width of up to 3m and a recognition rate of ≥99.8%. Equipped with a 10.1-inch high-sensitivity capacitive touch screen and built-in narrow-beam high-gain antenna arrays, it supports multi-gate combination for multi-lane control. Widely used in logistics, warehousing, libraries, clothing retail, and personnel attendance, having served over 100 industry customers worldwide.
RD-BZN6820P UHF RFID Security Gate is an
供电方式 110V/220V AC
通道宽度 1.5~3米
屏幕尺寸 10.1inch
工作频率 865MHz~868MHz, 902MHz~928MHz, 920MHz~925MHz, Customizable
SKU: --- Category: 多通道读写器

Product Description

RD-BZN6820P UHF RFID Security Gate is an ultra-high frequency RFID access control system designed by Bohang Electronics for demanding scenarios. It adopts self-developed narrow-beam, high-gain antenna arrays combined with advanced anti-collision algorithms to achieve fast and accurate identification of passing goods or personnel. Compliant with the EPC C1 G2 (ISO18000-6C) international standard, the single-lane width is adjustable up to 3 meters, with a typical recognition rate of ≥99.8%.

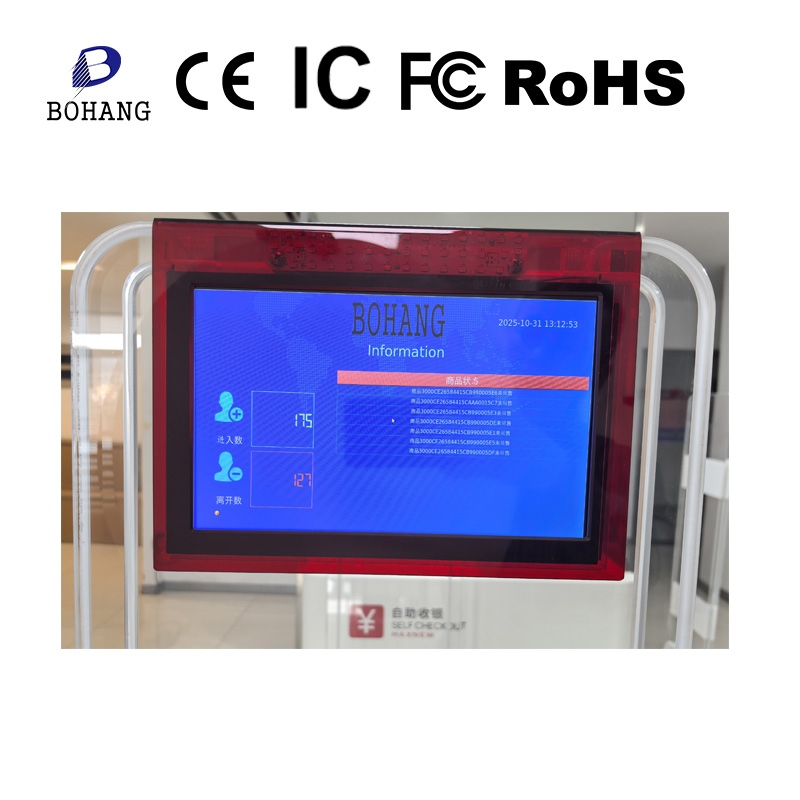

The product features a 10.1-inch IPS high-sensitivity capacitive touch screen that displays real-time passage status, alarm information, and statistics. The built-in industrial-grade reader supports master-slave mode, allowing multiple gates to be combined at the same entrance/exit for multi-lane control without mutual interference.

It provides standard RS232, RJ45, and RS485 interfaces, plus an open API for seamless integration with upper-level platforms such as WMS, ERP, and library systems. The device supports FHSS frequency hopping or fixed-frequency operation, with adjustable output power from 15 to 33 dBm to suit different environments.

The unit is constructed from acrylic and sheet metal for durability, with an operating temperature range of -20°C to 70°C, suitable for various indoor and outdoor scenarios. Whether for logistics sorting, warehouse anti-theft, self-service book borrowing/returning, or clothing store anti-theft and conference check-in, the RD-BZN6820P delivers stable and reliable RFID identification and access control management.

Product Details

\n• Standard GPIO interface (6 in / 4 out), convenient for connecting sound and light alarms, infrared sensors, etc.

Specifications

供电方式 110V/220V AC
通道宽度 1.5~3米
屏幕尺寸 10.1inch
工作频率 865MHz~868MHz, 902MHz~928MHz, 920MHz~925MHz, Customizable
工作温度 -20℃~70℃
产品型号 RD-BZN6820P
存储温度 -40℃~85℃
材料 ABS, 亚克力和钣金

Why Choose Us

高速识别,不漏读

自研多标签防碰撞算法,每秒读取超过400个标签,通道内批量识别快速准确。

稳定可靠,全天候运行

工业级元器件设计,7×24小时连续工作无故障,IP54防护,适应仓库、物流等复杂环境。

专业售后,快速响应

7×24小时技术支持,提供现场安装调试指导、远程诊断及免费固件升级。质保期1-3年可选。

多接口,易集成

内置RS232、RS485、RJ45接口,提供完整SDK和API文档,轻松对接WMS、ERP、图书馆系统。

Applications

\nFactory employee access, can work with facial recognition or fingerprint for two-factor authentication, with attendance data automatically uploaded to the HR system. Supports real-time large-screen display.

Qualification Certificates

ISO9001 Certificate

ISO9001 Certificate

19824QG1564ROS

CE Certificate

CE Certificate

XH2604B3139GC

High-Tech Enterprise Certificate

High-Tech Enterprise Certificate

GR201932008761

Bohang English Trademark (BOHANG)

Bohang English Trademark (BOHANG)

16543970

Bohang Chinese Trademark

Bohang Chinese Trademark

8456072

ROHS Certificate for RFID Label Converting Machine

ROHS Certificate for RFID Label Converting Machine

XH2604B3139GC

Frequently Asked Questions

1. What is the warranty period and after-sales service?
The warranty period within China is 1-5 years, with free repair during the warranty period, a commitment to respond within 2 hours, and on-site service within 48 hours. Outside China, local policies apply.
2. What is the maximum lane width supported by the RD-BZN6820P?

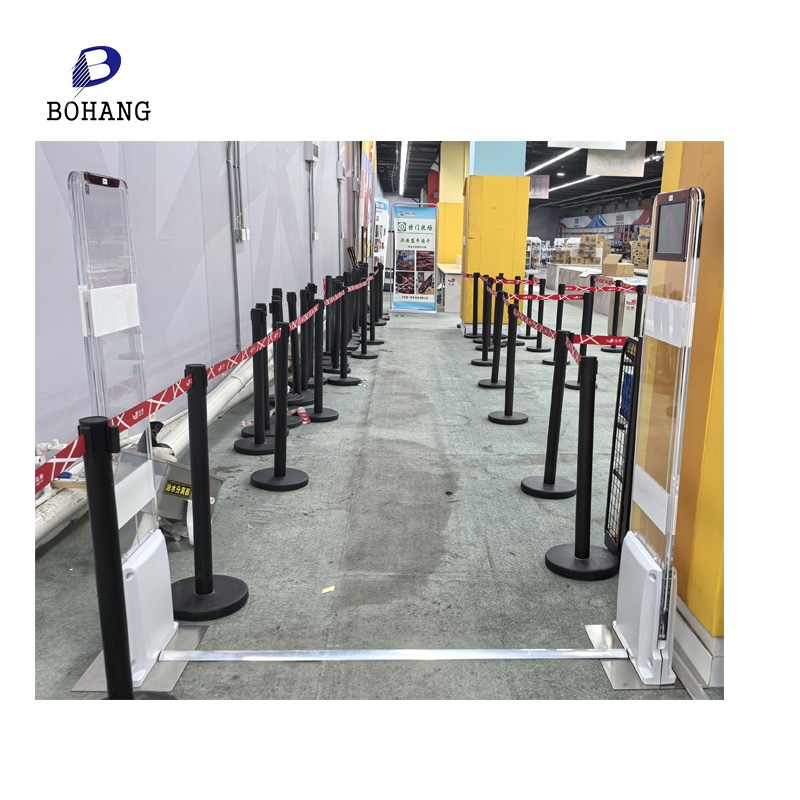

The maximum single-lane width can reach 3 meters; 1.5 meters is recommended for the best recognition rate. When combining multiple gates, the spacing between adjacent gates can be flexibly adjusted according to the on-site environment.
3. Which RFID tag protocols are supported?
Fully compatible with the EPC C1 G2 (ISO18000-6C) international standard, supporting the vast majority of UHF passive RFID tags on the market, including adhesive labels, rigid metal-resistant tags, and clothing hangtags.
4. How does the device achieve multi-lane control?

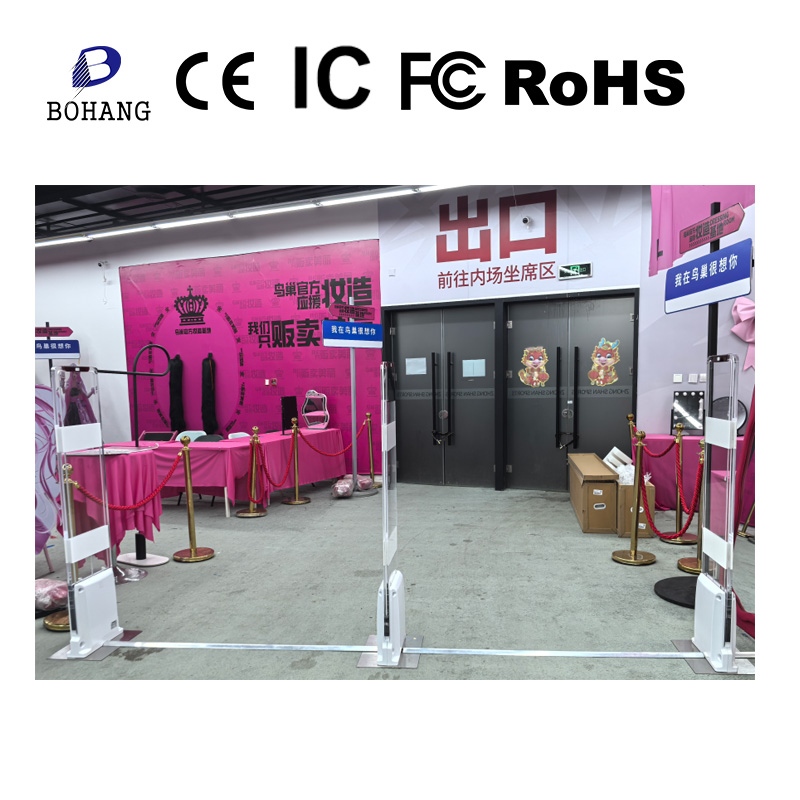

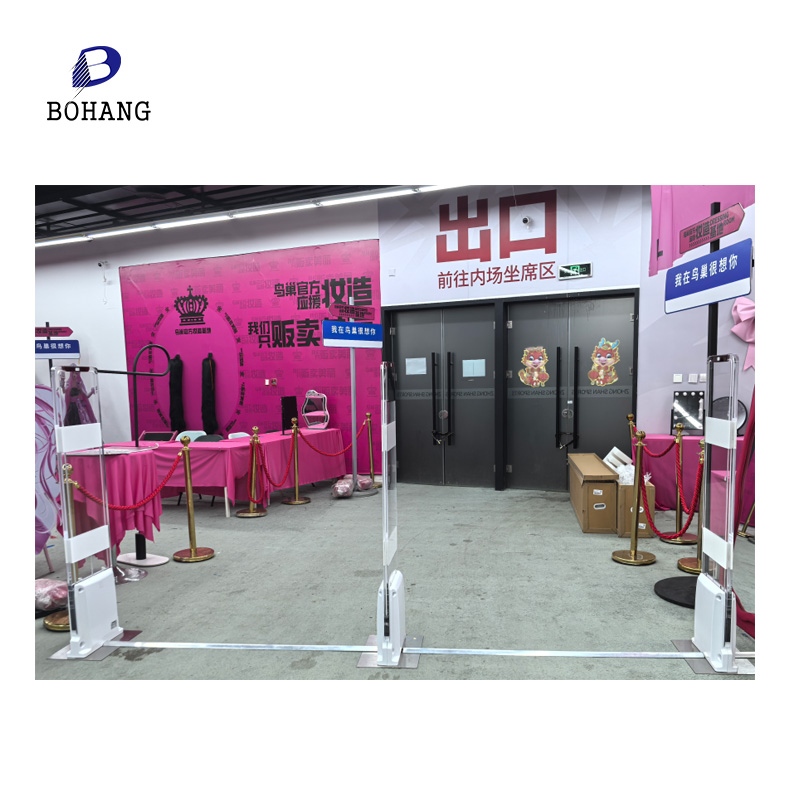

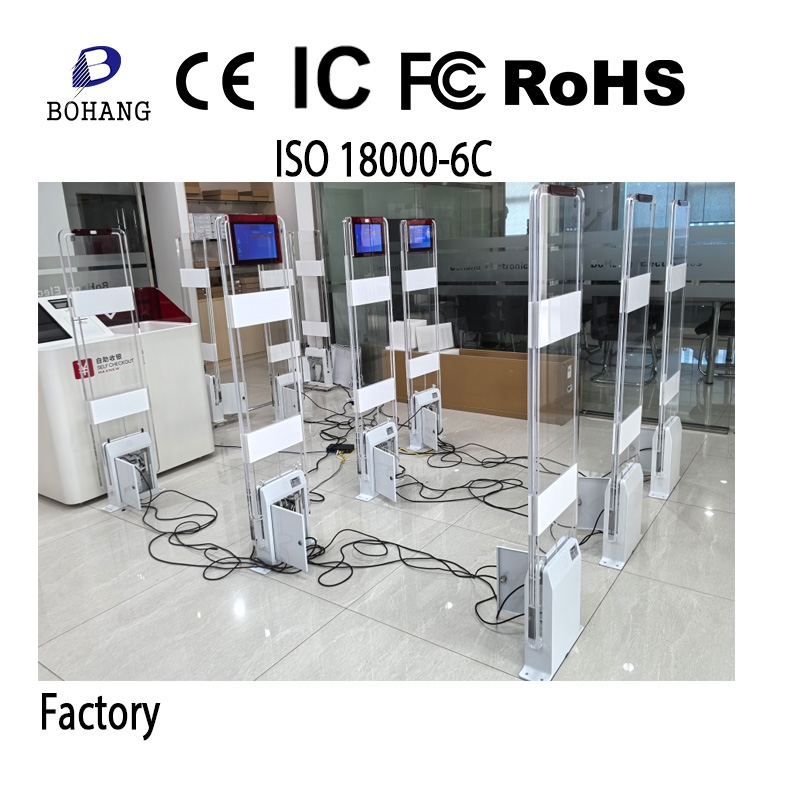

Multiple devices communicate via network cables and dedicated cables. The software can be configured for multi-lane logic at the same entrance/exit, achieving entry/exit counting, anti-collision, and joint alarms.
5. Can it integrate with my existing WMS or ERP system?
Yes. The device provides standard RS232, RS485, and RJ45 interfaces and complete API documentation, supporting seamless integration with various WMS, POS, and ERP management systems. We can also provide customized secondary development support.
6. Can the appearance color or software functions be customized?
Yes. The housing color, silk-screen LOGO, touch screen boot screen, and special functional requirements (such as special alarm logic, data export formats, etc.) can be customized. Please consult a sales engineer for details.
